19C double-pole ring-type power supply normally closed normally open self-locking reset

Short Description:

-Product Model: Q19C Double blade

-Material:304 stainless steel housing，PA66

-Protection level: IP67, IK10, IP40.

-Electrical parameters: 5A /250VAC

-Contact resistance:≤50Ω

-LED voltage:3V-220V

-Service temperature range:-20℃—55℃

-Lamp bead life:40,000 hours

-Mechanical life:30 times/min，500,000 times

-Insulation resistance:≥ 1000MΩ

Send email to us

Product Detail

FAQ

Product Tags

Product Characteristics

1. Adopt flame retardant material, high efficiency, energy saving, high safety, stainless steel shell anticorrosion and dustproof.
2. Contains PC button, silicone waterproof ring, easy to operate, solid and reliable.

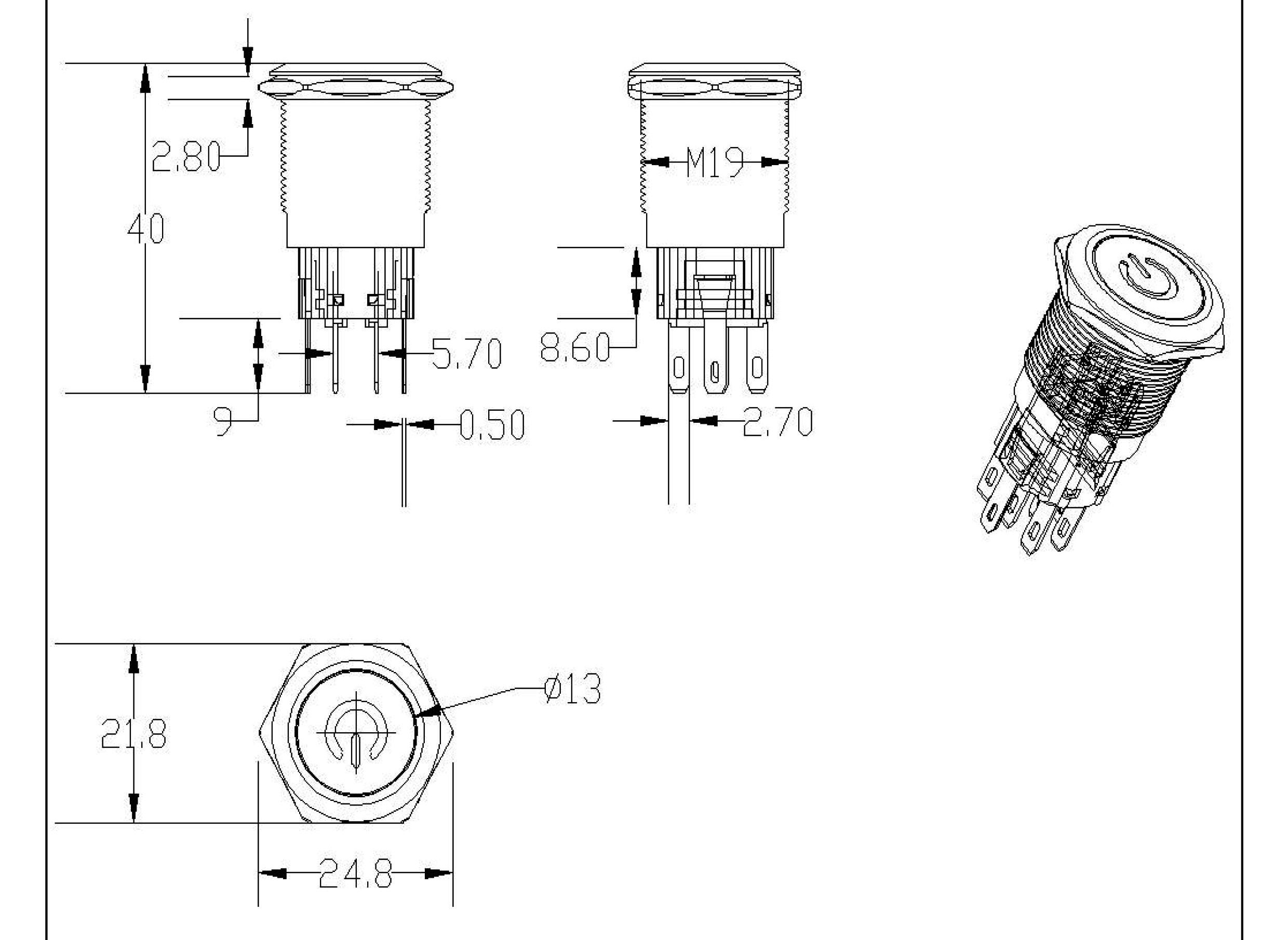

Product Drawing

Application Areas

The products can be used in transportation, automobile manufacturing, safety equipment, household appliances, medical equipment, electronic industry, starter, bathroom, home appliances industry, access control and so on.
